Control Valves

Channel Partner of Singer Valves — Odisha

Control Valves

WATCO, the esteemed channel partner for SINGER VALVES in the state of Odisha. At WATCO, our unwavering dedication to excellence and our commitment to providing cutting-edge fluid control solutions define our role as an authorized distributor. Through our strategic partnership with SINGER VALVES, we proudly deliver advanced valve technology to industries throughout the region.

Experience the epitome of precision and reliability with SINGER Control Valves, setting the industry benchmark for excellence in fluid control technology. Recognized globally for their innovative solutions, SINGER Control Valves assume a crucial role in optimizing processes across diverse industries.

Singer Valves Partner Odisha Distributor
Singer Control Valves
Product Range

Singer Control Valves

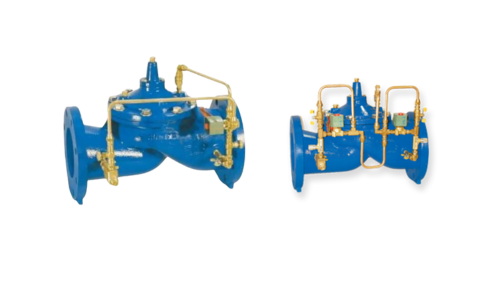

Electronic Control Valves
Electronic Control

ELECTRONIC CONTROL VALVES

106 / 206-2SC-PCO Dual Solenoid Control for Positioning and SCADA Controls

The Singer models 106-2SC-PCO and 206-2SC-PCO dual solenoid electronic valves are based on the Singer model 106-PG or 206-PG main valve. The flow into and out of the upper operating chamber is controlled by the two pilot solenoids. The electronic control determines whether the opening solenoid or the closing solenoid is operated.

The electronic control determines the valve function. Virtually any hydraulic function can be achieved using the "open-close" output from the SCADA controller to the valve.

  • Precise control from remote locations
  • Process controller compatible
  • Minimal power needed for stand-by operation
  • Complete service in-line
  • Manual controls for emergencies
Singer Valve Inc.

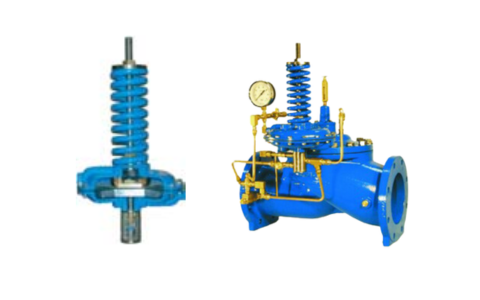

Level Control Valves
Level Control

LEVEL CONTROL VALVES

106 / 206-A-Type 1 Two-Way Flow Altitude Control Valve

The 106-A-Type 1 and 206-A-Type 1 altitude control valves are based on the 106-PG or 206-PG main valve and are ideal for maintaining a preset maximum water level. The valve functions as a two position control valve, either fully open or fully closed.

The Type 1 allows normal forward flow to fill the reservoir to the maximum level and then closes drip-tight at the set-point. It opens to allow reverse flow through the valve when the supply pressure drops a fixed amount below the reservoir head. When a higher supply pressure is restored, the Type 1 valve will then allow normal forward flow to refill the tank to the maximum level.

  • No overflows
  • Superior repeatability
  • Minimal power needed for stand-by operation
  • Positive shut-off
  • Easily serviceable at ground level
Singer Valve Inc.

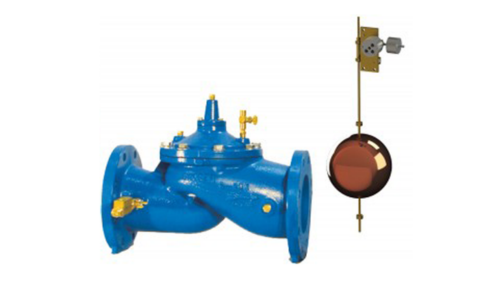

Level Control Float Valves Type 5
Float Valve

LEVEL CONTROL FLOAT VALVES

106 / 206-F-Type 5 Non-Modulating Float Valve

The 106-F-Type 5 and 206-F-Type 5 non-modulating float valves are based on the 106-PG or 206-PG main valve. It is ideal for allowing normal forward flow to fill water reservoirs to a desired high level and where the pilot and valve of the reservoirs are easily accessible.

The valve functions as a two position valve, either open or closed. The valve remains closed when the reservoir level drops, until the float reaches the pre-determined adjustable minimum reservoir level. The F-Type 5 valve then opens to refill the reservoir and closes tightly when high water level is achieved.

  • No overflow, drip-tight close
  • Adjustable draw down
  • Easily adjustable level settings
  • Low supply pressure options
Singer Valve Inc.

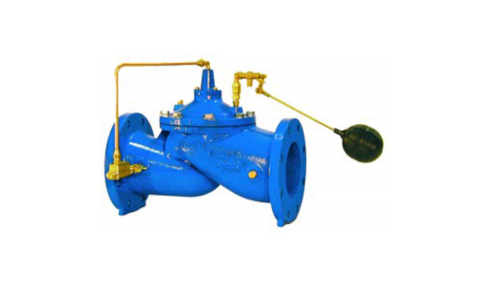

Level Control Float Valves Type 4
Modulating Float Valve

LEVEL CONTROL FLOAT VALVES

106 / 206-F-Type 4 Modulating Float Valve

The Singer model 106-F-Type 4 and 206-F-Type 4 modulating float valves are based on the 106-PG or 206-PG main valve. They are ideal for maintaining a constant water level in reservoirs, tanks and cisterns where precise level control and modulated flow is required.

  • Constant level maintenance
  • Automatic compensation
  • Integral damping
  • Drip-tight shut-off
Singer Valve Inc.
